How a Kraft Tuck-Top Mailer Box Is Manufactured for Perfume Brands

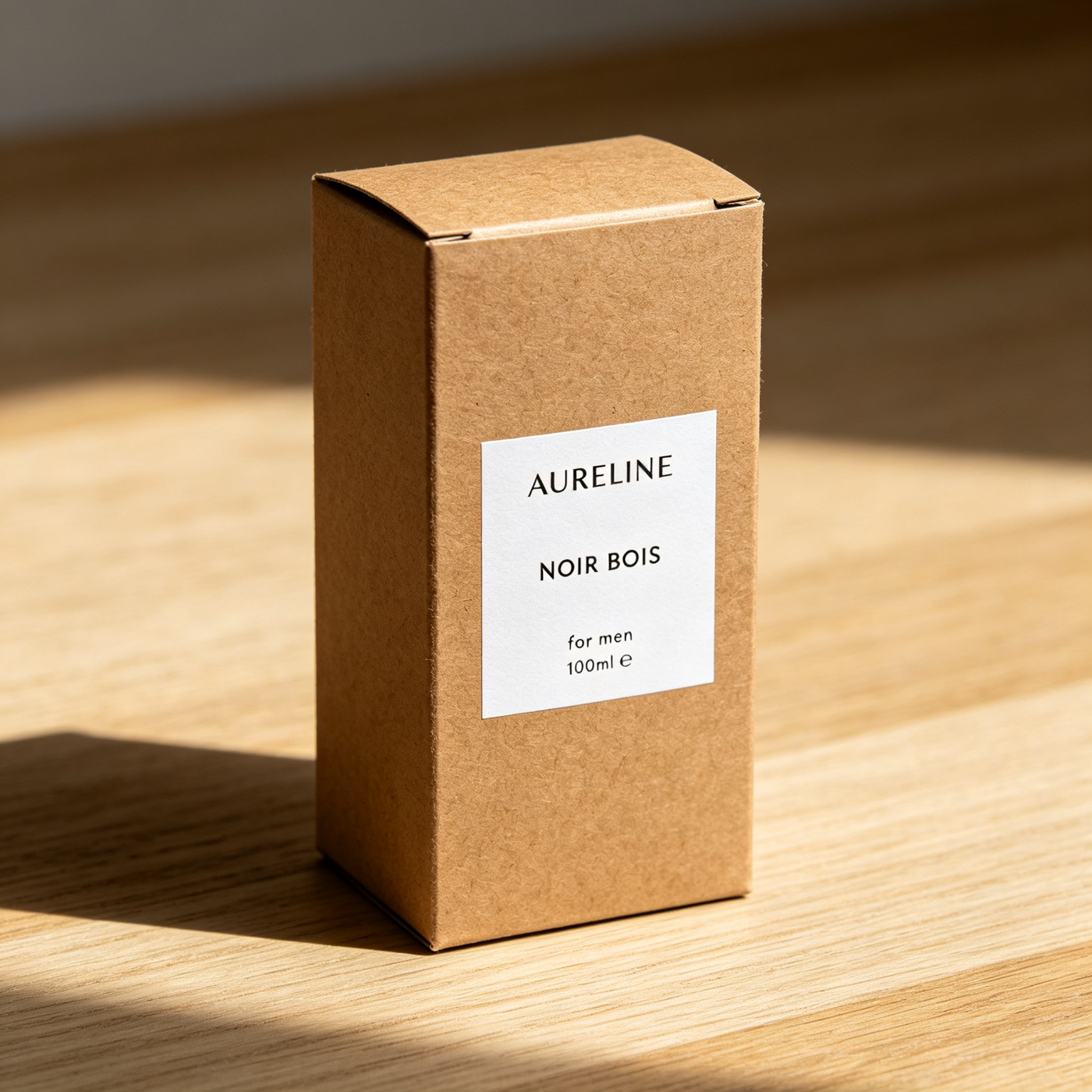

Fig. 1 — Finished kraft tuck-top mailer box, closed front view (AURELINE / NOIR BOIS)

A kraft box looks simple, but producing it in high volume with stable color, clean creases and a tuck flap that closes flat every time is a manufacturing discipline. For fragrance and beauty brands planning a launch, the question is not "can you make this box" — it is "can you keep making it, in large quantities, with the same paper, the same print and the same structure, order after order." This article walks through how a kraft tuck-top mailer box is actually manufactured, from paper selection to container loading, and what a brand should check before committing to a program.

1. Material: Why Natural Kraft Paperboard

The box is made from natural kraft paperboard, a single-layer paper with a warm brown shade and visible fiber texture. Kraft board is selected for three reasons: it is lightweight, fully recyclable, and its natural color means the box needs no full-surface coating to look finished.

Incoming kraft is checked for shade, caliper and moisture. Kraft is a natural material; even from the same mill, two rolls can differ slightly in tone. A manufacturer that controls this step controls the biggest variable in keeping repeat orders consistent.

2. Printing: A White Label with Four Lines of Black Text

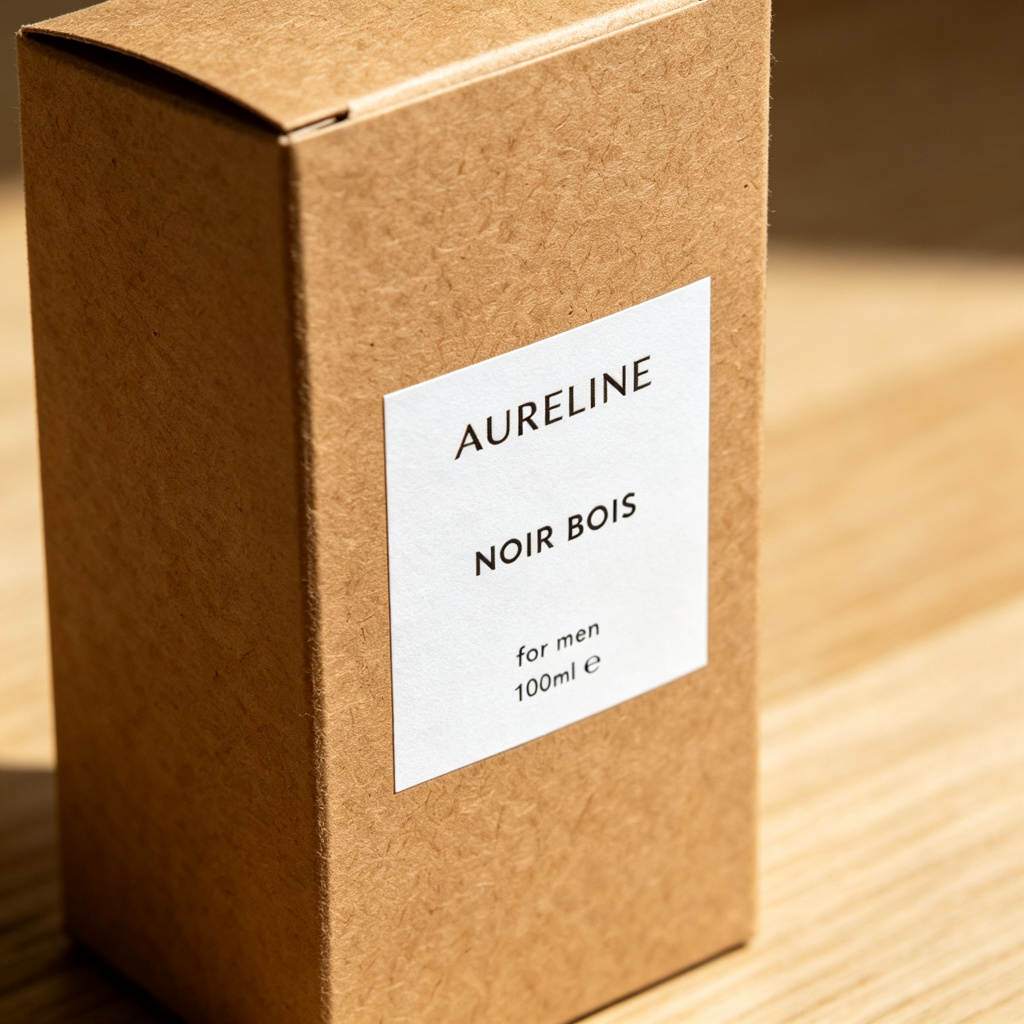

Fig. 2 — Macro detail of the printed white label on kraft paper

Instead of printing directly on the brown surface, this box uses a white label printed in deep black ink. Four lines — brand name, product name, target audience and capacity — are set on the label in one pass. The white label on kraft is a deliberate production choice: it gives the contrast of a clean, minimal front while keeping the rest of the box in natural kraft.

Color control is done with a spectrophotometer on press. The black is held neutral and dense, and registration is checked so the text stays sharp. For brand work, Pantone spot colors can be matched; for this design, a controlled process black keeps reproduction stable across runs.

3. Structure: One-Piece Die-Cutting, Creasing and Folding

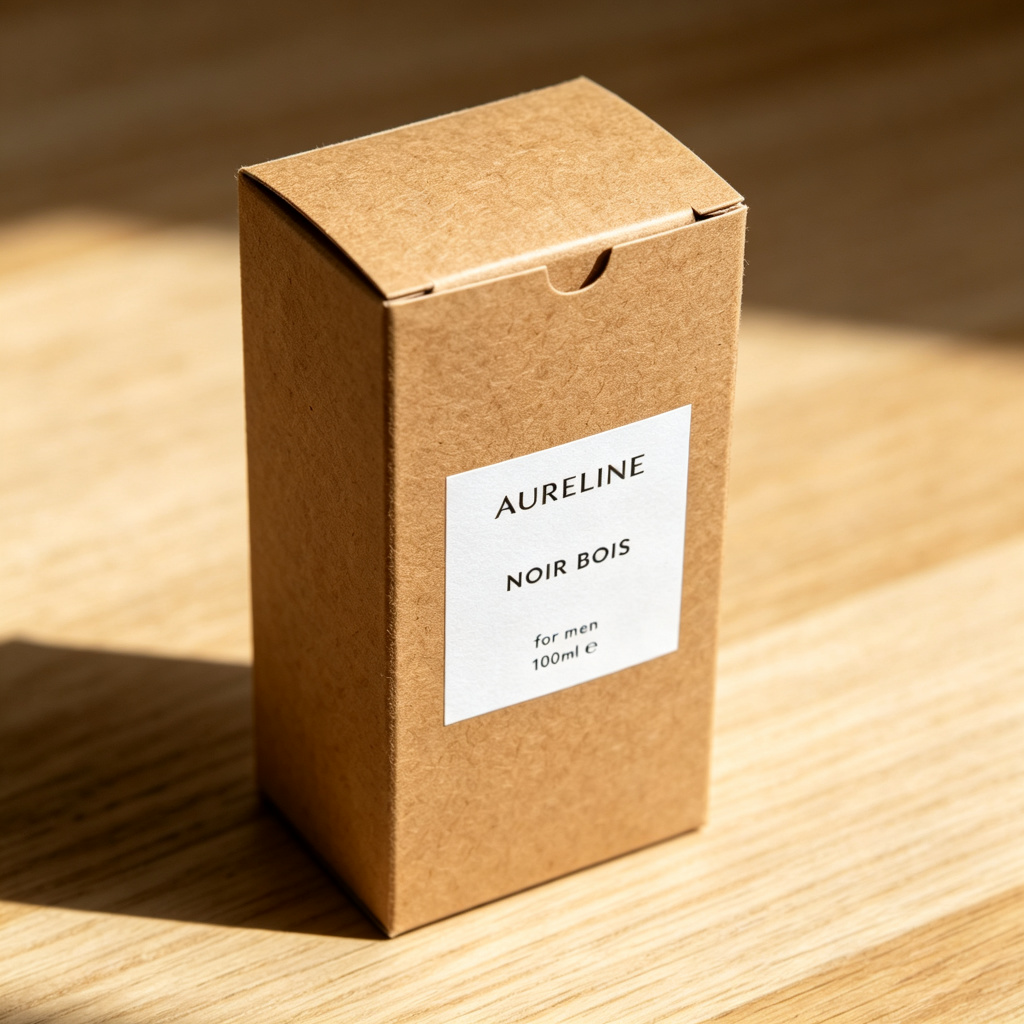

Fig. 3 — Closed top of the tuck-top mailer: flat, no visible gap, no hardware

The tuck-top mailer is a one-piece folding carton. A steel-rule die cuts the outline and creases the fold lines in a single press. Crease depth is calibrated so the board folds crisply without cracking the surface.

3.1 The tuck-top flap

The top flap folds down and tucks into the front panel to close the box. When closed, the top is flat and the closure is invisible from the front. No glue, tape or hardware is needed on the closure — the structure holds itself.

3.2 Folding flat for shipping

Because the mailer is one piece, it ships flat and is erected by hand or machine in seconds. This is what makes high-volume production economical: the same structure runs from a 500-piece first batch to 100,000-piece repeat orders, and flat-packed cartons save freight and warehouse space.

4. High-Volume Production: From 500 to 100,000 Pieces

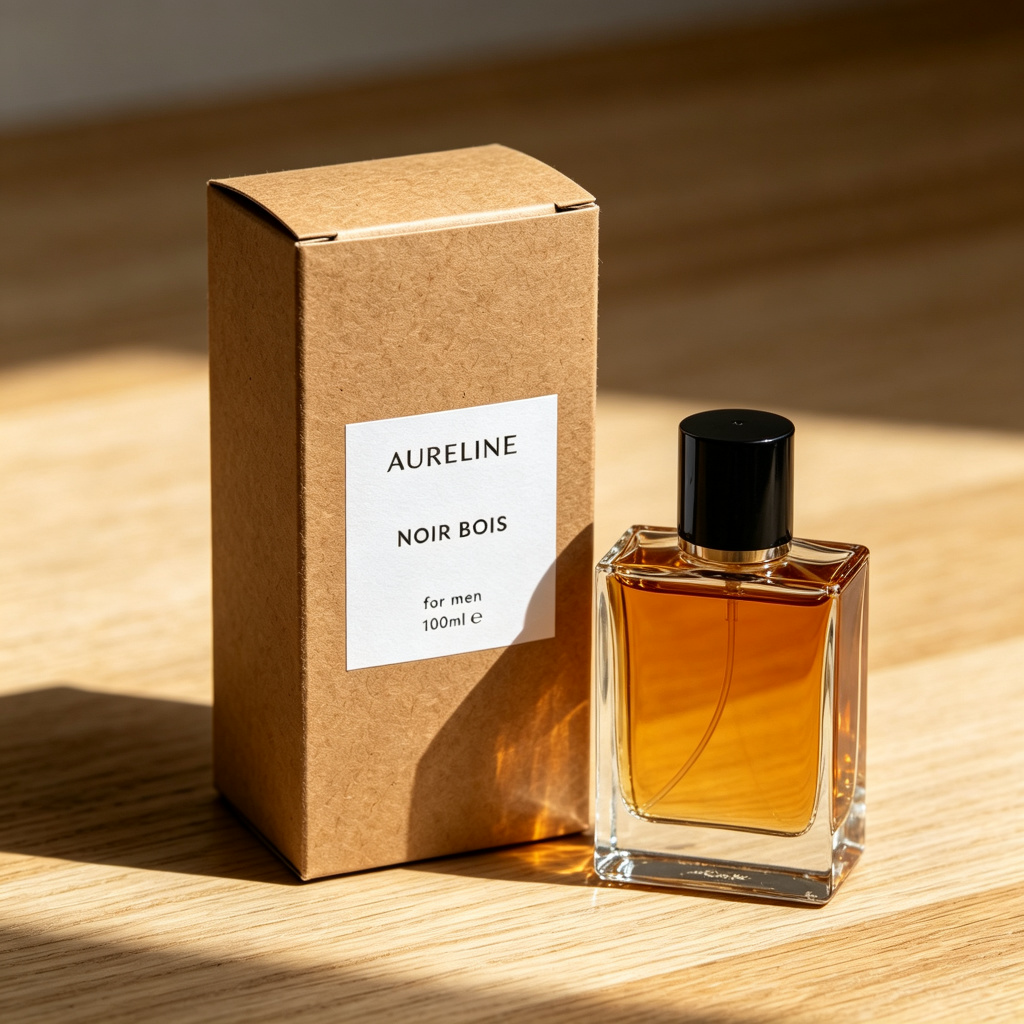

Fig. 4 — Mailer box with a 100ml glass bottle: bottle height around 85% of the box, compact fit

This box is designed for scalable production. Paper is ordered to the production schedule, printed sheets move through die-cutting and folding in batches, and multiple SKUs can be produced in one run and packed together for a single container load. For brands with several products, multiple SKUs share the same paper and ink where possible, which keeps per-unit cost down and makes repeat orders faster — the die, print plates and color recipes are all kept on file.

5. QC: What Is Checked Before Packing

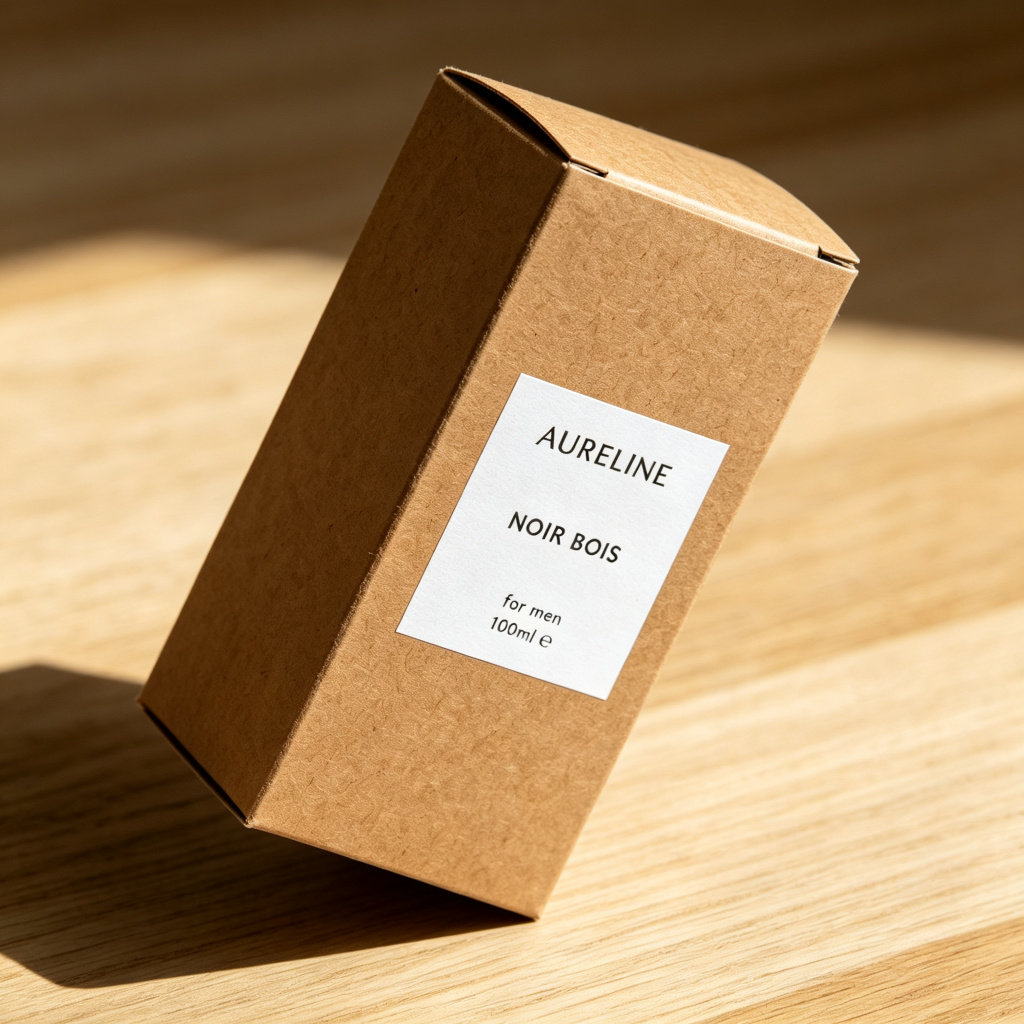

Fig. 5 — Three-quarter view showing the narrow side and closed top

Quality control on this mailer box covers five checkpoints:

<!--[if !supportLists]-->· <!--[endif]-->Incoming kraft: shade, caliper and moisture against spec

<!--[if !supportLists]-->· <!--[endif]-->On-press print: ink density, registration and color against the approved proof (ΔE held tight)

<!--[if !supportLists]-->· <!--[endif]-->Die-cutting: crease accuracy and clean cut edges

<!--[if !supportLists]-->· <!--[endif]-->Folding: flap fit and flat-pack quality, no cracked creases

<!--[if !supportLists]-->· <!--[endif]-->Drop and closure test: box survives transit and closes flat every time

A manufacturer with consistent QC produces repeat orders that match the first sample. That consistency — not a single perfect box — is what a brand actually buys.

6. Packing, Container Loading and Global Shipping

Finished mailers are flat-packed in export cartons for freight efficiency, then loaded into containers by SKU with packing lists and markings. Shenzhen CKT Print Co., Ltd. ships FOB, CIF or DDP to global markets with full export documentation, and can combine several SKUs in one container to reduce freight cost for the buyer.

7. OEM / ODM: From Artwork to Repeat Orders

Shenzhen CKT Print Co., Ltd. is a professional paper packaging manufacturer specializing in custom perfume packaging, cosmetic packaging and premium rigid boxes for global brands. For this kraft mailer box, the OEM / ODM process is:

<!--[if !supportLists]-->· <!--[endif]-->Structure and dimension review with the bottle

<!--[if !supportLists]-->· <!--[endif]-->Artwork proof and color match (white label, black print)

<!--[if !supportLists]-->· <!--[endif]-->Sample making in 3–7 days

<!--[if !supportLists]-->· <!--[endif]-->Bulk production in 15–25 days depending on quantity

<!--[if !supportLists]-->· <!--[endif]-->QC, flat-pack packing and container loading

The same tooling is stored for repeat production, so a second order is faster and the kraft shade and print stay consistent with the first.
