Figure 1: Main visual — tuck-end carton with vibrant crimson-to-black radial gradient; matte black bottle

In high-end perfume packaging, folding cartons are often underestimated. Many brand owners assume rigid boxes equal premium, yet more than half of mainstream international fragrance lines use precision-engineered tuck-end folding cartons for retail editions. This case study follows a crimson-to-black radial gradient carton through material selection, offset printing, surface finishing, die-cutting and gluing, and quality control from Shenzhen CKT Print Co., Ltd.

1. Material: 350gsm Coated White Board

This vertical carton uses 350gsm coated white paperboard (~0.5 mm thick).

<!--[if !supportLists]-->· <!--[endif]-->Crease spring-back under 3% on automatic folder-gluer lines.

<!--[if !supportLists]-->· <!--[endif]-->Parker Print Surf ~1.2 μm supports four-color offset and smooth mid-tones.

<!--[if !supportLists]-->· <!--[endif]-->12.5% less paper than 400gsm, FSC-certified, EU recyclable.

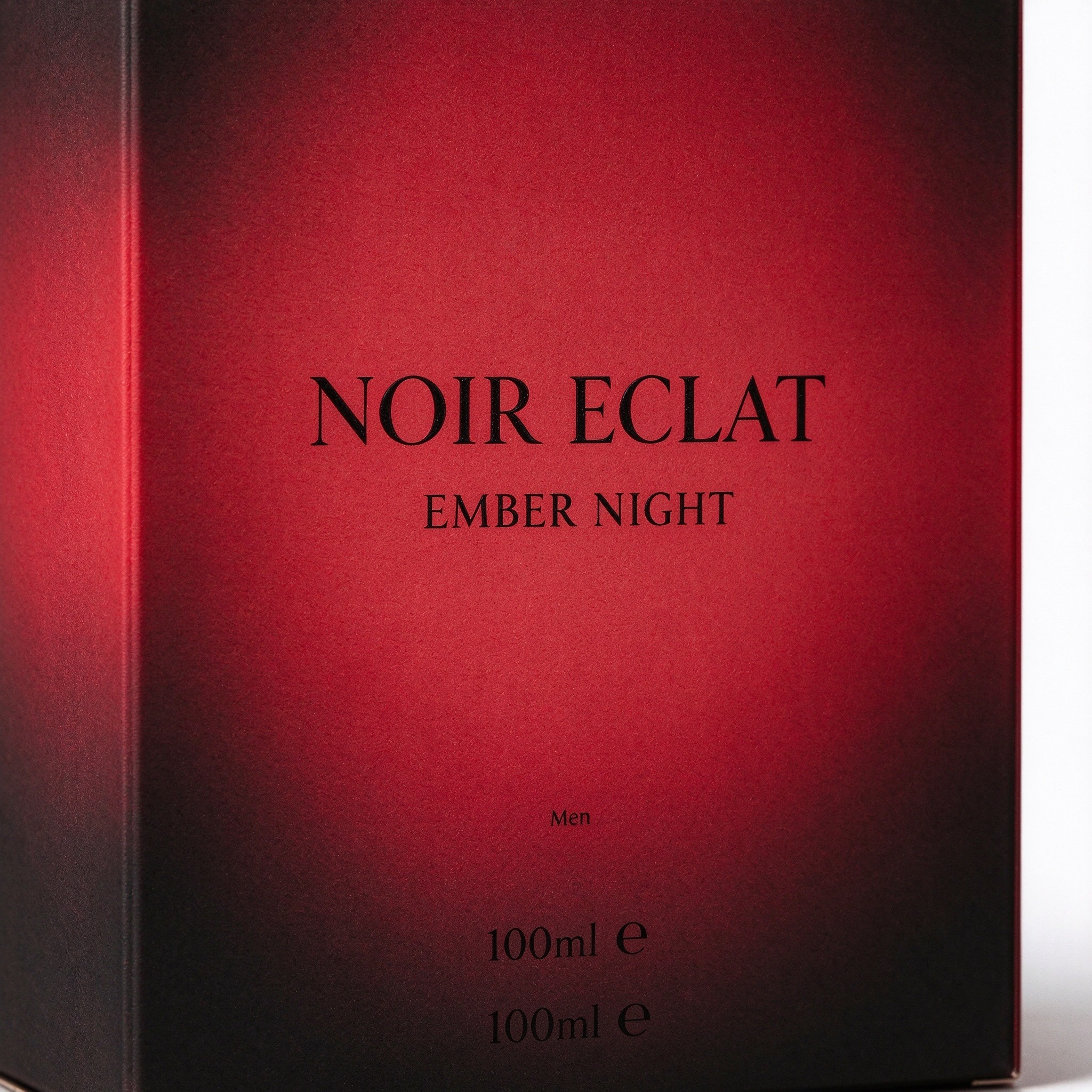

Figure 2: Label macro — matte black ink on vibrant red gradient

2. Printing: Full-Sheet Offset

FM stochastic screening at 20 μm on Heidelberg CD102. CIP4 pre-sets hold ΔE ≤2.5.

2.2 Registration on Dark Ground

Four-line label in single pass. X-Rite eXact checks black density at 1.8 ± 0.1 every 500 sheets.

3. Surface Finishing: Matte BOPP Lamination

<!--[if !supportLists]-->· <!--[endif]-->Reduces specular reflection; gradient reads subdued and layered.

<!--[if !supportLists]-->· <!--[endif]-->≥200 Sutherland rub cycles without scuffing.

<!--[if !supportLists]-->· <!--[endif]-->~30% cheaper than soft-touch; saves $0.03–0.05 per box at 10k+.

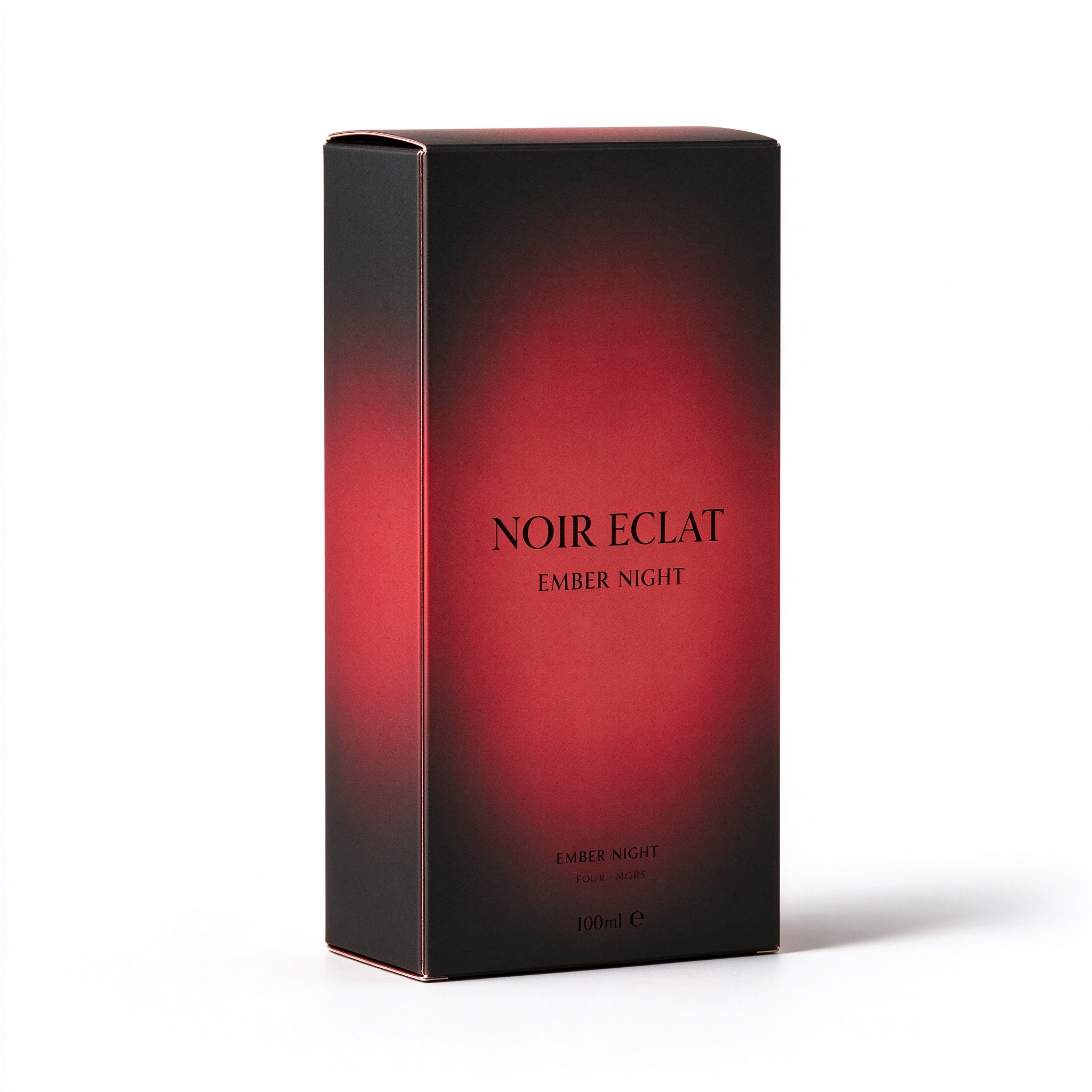

Figure 3: Three-quarter side view — matte surface, flush glue seam, closed tuck flap

4. Structure: Die-Cutting, Creasing and Gluing

Laser-cut die ±0.1 mm. Double crease lines at 50–60% board thickness.

Folder-gluer at 180–220 m/min. Hot-melt bead 3–4 mm. Tuck tongue 0.5 mm narrower than slot.

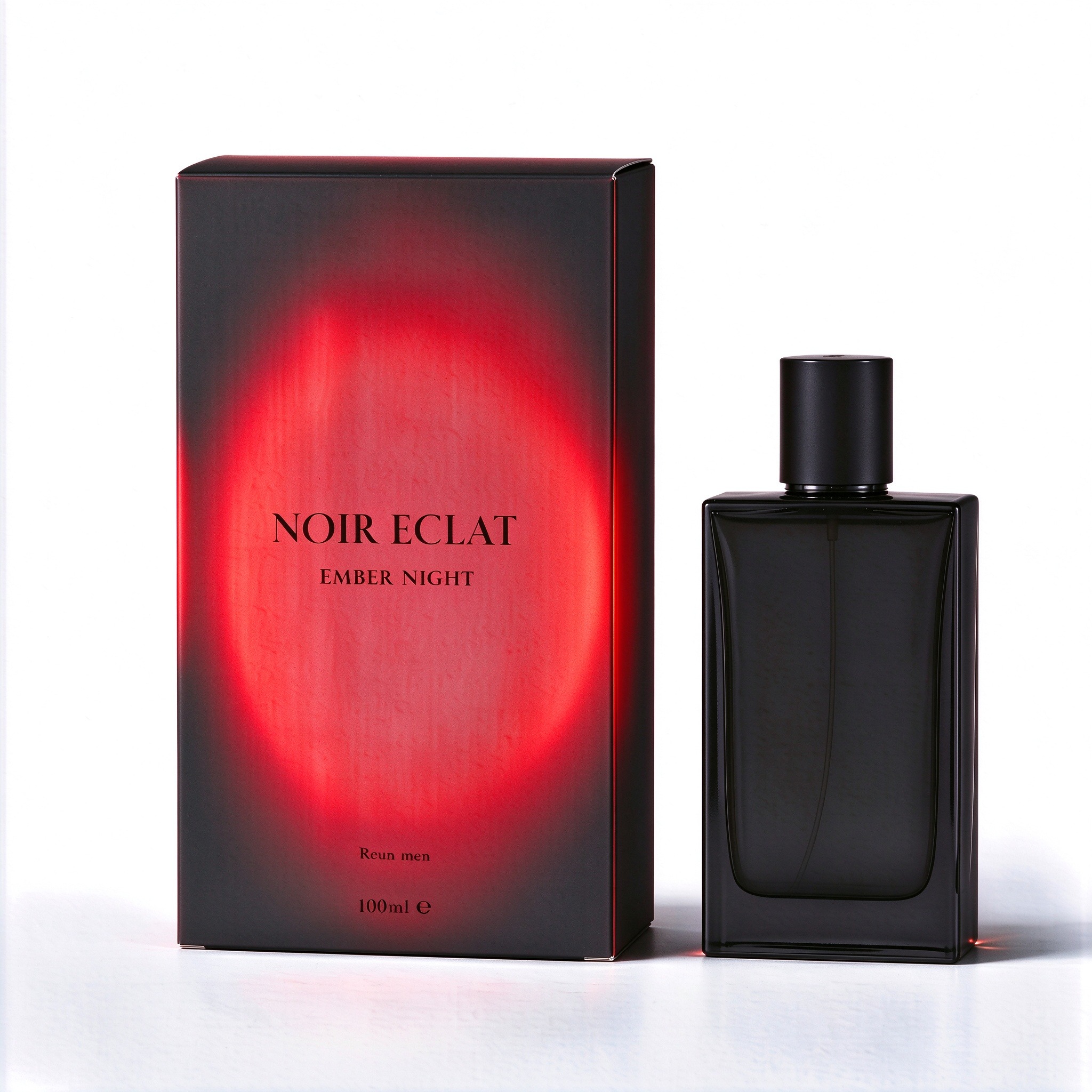

Figure 4: Box and bottle proportion — carton main subject, matte black bottle

5. Quality Control

<!--[if !supportLists]-->1. <!--[endif]-->First article: registration ≤0.15 mm, ΔE ≤2.5, die-cut ±0.3 mm, glue peel ≥2 N/15 mm.

<!--[if !supportLists]-->2. <!--[endif]-->In-process: spectrodensity every 500 sheets; die-cut/glue every 2,000.

<!--[if !supportLists]-->3. <!--[endif]-->Final: AQL 2.5 for scratches, bubbles, crease cracks, flap looseness.

6. OEM Workflow and Capacity

<!--[if !supportLists]-->4. <!--[endif]-->Structural die-line and 3D visual within 2 business days.

<!--[if !supportLists]-->5. <!--[endif]-->Sampling: digital 3–5 days; physical printed 5–7 days.

<!--[if !supportLists]-->6. <!--[endif]-->Mass production: 12–18 business days. FOB/CIF/DDP.

<!--[if !supportLists]-->7. <!--[endif]-->Monthly ~2 million folding cartons. MOQ 500; die fee refunded at 5,000+.

Figure 5: Lifestyle scene — carton on rough stone pedestal with warm sunlight

Figure 6: Overhead flat lay — white stone slab on dark grey with pampas edge

Conclusion

A tuck-end folding carton meets premium retail standards when materials, print, finishing, and structure are tightly controlled. Shenzhen CKT Print Co., Ltd. has specialized in carton manufacturing for 15 years. Contact us for free structural design and pricing.
