Gold perfume packaging does not always mean hot foil stamping. For many fragrance brands, a full-bleed metallic gold ink printed on coated paperboard delivers a smooth metal sheen at a fraction of the cost. This article walks through how Shenzhen CKT Print Co., Ltd. prints and builds a champagne gold tuck-end folding carton — from paperboard to ink laydown, lamination, die-cutting and gluing.
The carton starts with 350gsm single-sided coated art paper. The coated side provides a closed, smooth surface that keeps metallic ink on top of the sheet instead of soaking into the fibers — this is what gives the gold its even, mirror-like density.
<!--[if !supportLists]-->· <!--[endif]-->Caliper ~0.45 mm, consistent across the sheet for clean creasing.
<!--[if !supportLists]-->· <!--[endif]-->Coating pick resistance verified before press to avoid flaking in solid coverage.
<!--[if !supportLists]-->· <!--[endif]-->Grain direction along the fold lines to prevent cracking on the creases.
The champagne gold is a metallic Pantone ink containing fine aluminum flakes suspended in a transparent gold vehicle. It is laid down at full bleed on the offset press. Solid coverage requires higher ink film thickness than standard CMYK, so density is measured with a spectrodensitometer on every run.
<!--[if !supportLists]-->1. <!--[endif]-->PMS 871 C class metallic gold matched to target Lab values, Delta E under 2.5.
<!--[if !supportLists]-->2. <!--[endif]-->Two passes on heavy coverage to reach full opacity without mottling.
<!--[if !supportLists]-->3. <!--[endif]-->Black text overprinted in a second pass with tight registration for crisp letters.
Figure 2: Macro — metallic gold ink flakes with flat black overprinted letters
Raw metallic ink is prone to scuffing and oxidation. A matte PET lamination film is applied over the printed sheet, protecting the gold while keeping a low-glare surface that reads as premium. The matte finish also prevents fingerprints on the final carton.
The laminated sheet is die-cut on a platen press. Precise crease depth keeps the board folding cleanly without cracking the gold ink at the corners. Automatic folder-gluers apply the side seam and fold the blank into a flat tuck-end carton ready for the filling line.
<!--[if !supportLists]-->4. <!--[endif]-->Crease depth tuned to 0.45 mm board to avoid hairline cracks in metallic ink.
<!--[if !supportLists]-->5. <!--[endif]-->Side seam glued with hot-melt at controlled temperature for consistent bond.
<!--[if !supportLists]-->6. <!--[endif]-->Tuck flap tolerance ±0.3 mm so the carton erects square and closes flat.

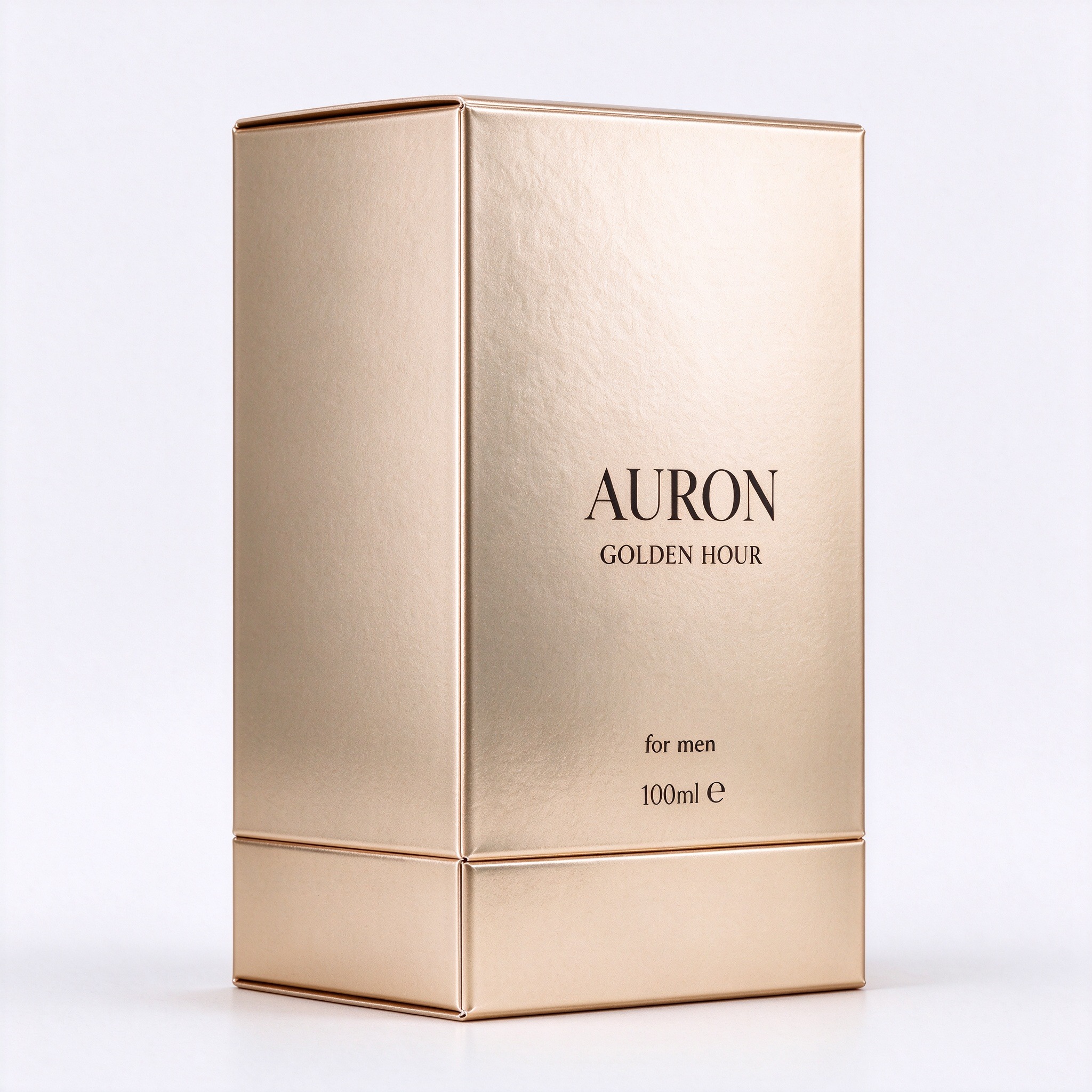

Figure 3: Three-quarter view — thin paperboard edge and smooth gold front panel
<!--[if !supportLists]-->· <!--[endif]-->First article: ink density, gloss meter, crease crack check at all eight corners.
<!--[if !supportLists]-->· <!--[endif]-->In-process: scuff test with Sutherland rub tester every 200 sheets.
<!--[if !supportLists]-->· <!--[endif]-->Final: erect test, tuck flap close force, AQL 2.5 sampling.
<!--[if !supportLists]-->· <!--[endif]-->Die-line and 3D visual within 2 business days.
<!--[if !supportLists]-->· <!--[endif]-->Sampling: digital proof 3–5 days; physical printed sample 5–7 days.
<!--[if !supportLists]-->· <!--[endif]-->Mass production: 10–15 business days. FOB/CIF/DDP.
<!--[if !supportLists]-->· <!--[endif]-->Monthly ~2,000,000 folding cartons. MOQ 500; die fee refunded at 10,000+.

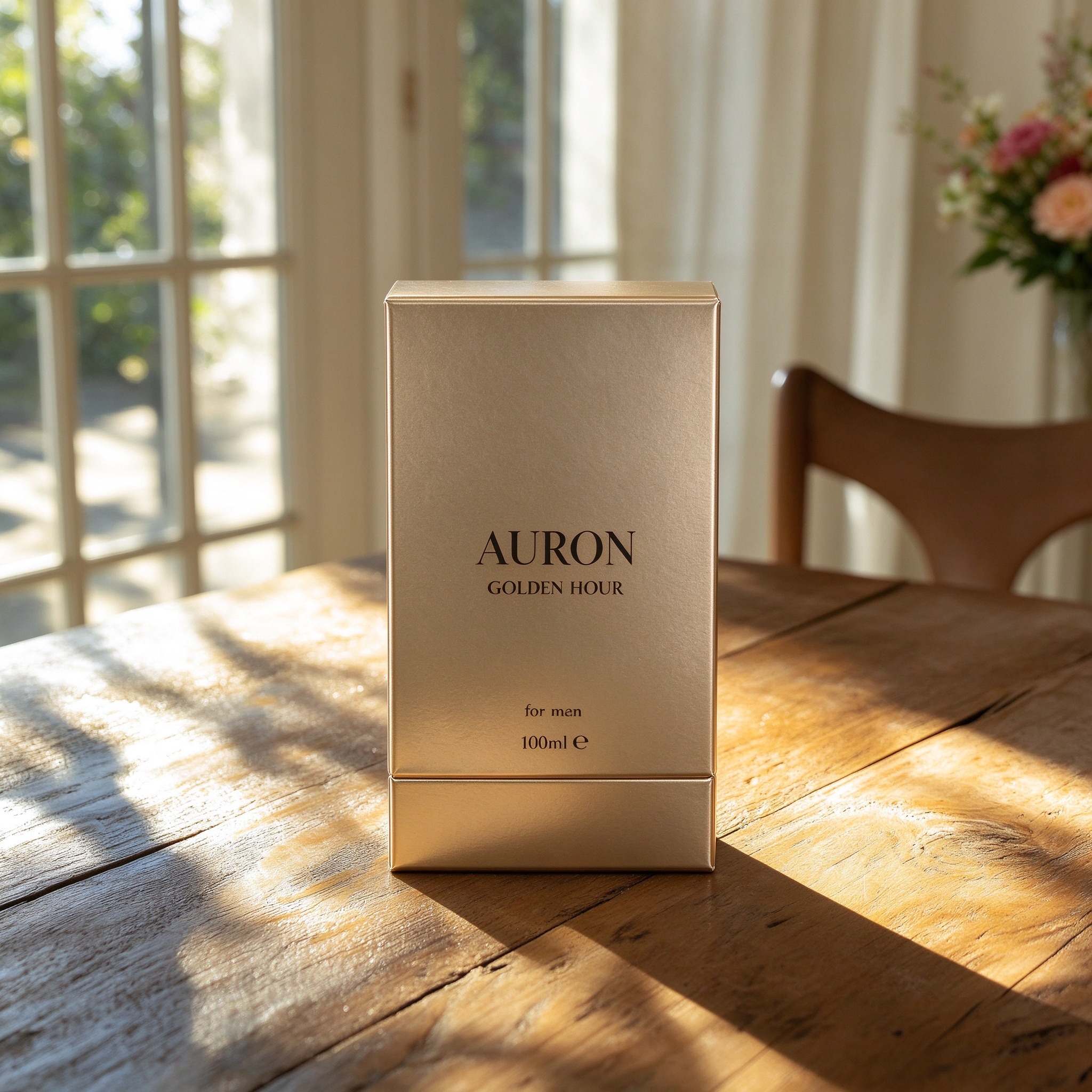

Figure 4: Lifestyle scene — gold carton on wooden table in sunlit room with window-grid shadows

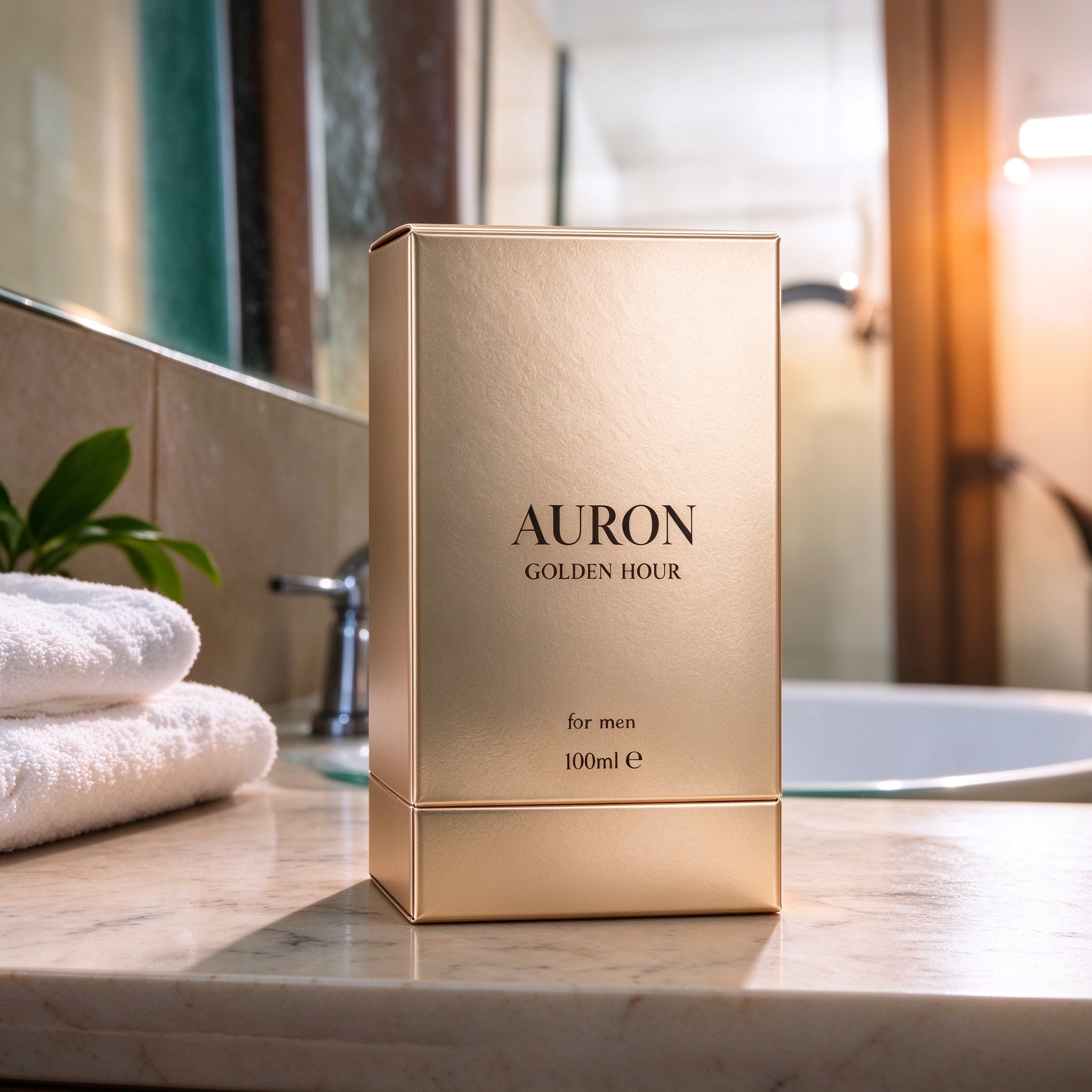

Figure 5: Lifestyle scene — gold carton on marble bathroom counter with folded towels
