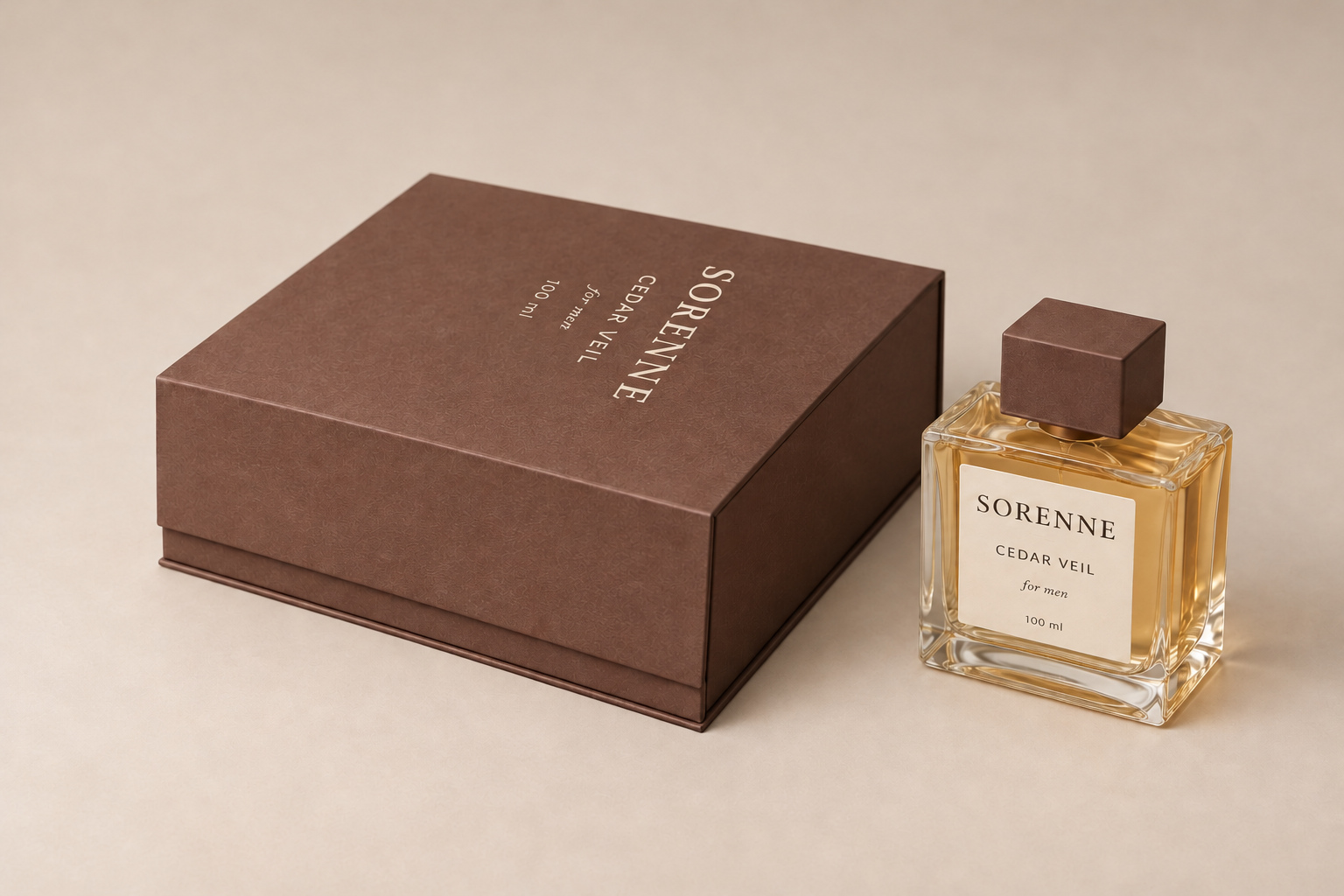

Fig. 1 SORENNE CEDAR VEIL in its closed magnetic flip-top rigid paper box. All visuals are original AI-generated packaging concepts, not photographs of manufactured samples.
Custom perfume packaging boxes need a defined opening structure, readable artwork and an insert engineered around the actual bottle. The SORENNE CEDAR VEIL concept combines cocoa-brown textured wrapping paper, ivory flat printing and a magnetic front flap. Inside, the bottle lies crosswise with its cap facing right when viewed from the front closure. The lid artwork reads from the right side of the box. This article explains the proposed manufacturing route from Shenzhen CKT Print Co., Ltd., including materials, forming, sampling and quality control. CKT supplies custom paper packaging; fragrance, glass bottles, caps and sprayers are excluded.
1 Materials for a Magnetic Rigid Box
1.1 Structural greyboard
A 2 mm greyboard construction is the provisional costing assumption. The fixed inner tray is bonded to the bottom and back of the outer case. The case continues through the back spine, hinged top lid and separate front magnetic flap. Board thickness, hinge allowance and finished dimensions must be engineered together. This is an assembled rigid setup box. Its final size must be established using the bottle sample, insert support and decorated structural prototype.
1.2 Cocoa brown wrapping paper
The proposed wrapper is a 120 gsm uncoated specialty paper with fine grain and a natural matte surface. Approve its brown shade on a physical paper swatch and then on a wrapped sample. Paper grain, thickness and adhesive behaviour affect the fold edges and hinge flexibility. Check for whitening, wrinkles, glue marks and uneven turn-ins. The ivory inside lid should remain clean, with a consistent brown border around the lining.
2 Flat Printing and Artwork Orientation
The exterior lid carries four original lines: SORENNE, CEDAR VEIL, for men and 100 ml. The artwork uses warm ivory flat printing on brown paper. It is oriented to read from the right side of the closed box. The specification includes no metallic plaque, raised badge, foil border or added metal component. Preserve the approved wording, type arrangement and reading direction across all image assets and production artwork.
2.1 Printing on textured stock
Trial the selected printing method on the actual wrapping paper. A paper and ink combination must provide sufficient contrast and legibility without filling fine details. Assess dried ink coverage, letter edges and the two smallest lines under normal viewing light. An ivory colour shown on screen is not a production colour standard. Approve a physical print proof and agree how repeat batches will be compared.
2.2 Mapping artwork to the assembled lid
Mark the front magnetic flap, rear hinge and right-hand reading edge on the dieline. Check the printed sheet after wrapping, because a correct flat file can still be assembled in the wrong direction. Use an annotated decorated sample to confirm the final reading position. Keep the bottle presentation drawing and packaging artwork drawing together in the approval record so that the insert and exterior are not signed off separately with conflicting orientations.
3 Natural Paper Surface and Handling
The intended finish comes from the paper itself. Film lamination, soft-touch coating, spot UV and hot foil are not included in this concept. The fine grain should remain visible on the lid, flap and tray walls. Check the chosen paper and ink during wrapping and handling before assuming that an uncoated finish can meet the order requirements. An added protective finish would need a new sample and revised costing.
3.1 Rub and fold checks
Agree handling and rub checks with the buyer using a decorated sample. Inspect the front flap edge, hinge folds and corners, where repeated use can reveal wear. Review ink transfer, paper scuffing and adhesive staining. The acceptable appearance after testing should be defined before bulk production. A rendered texture does not establish the performance of a particular paper grade.
4 Forming the Case and Magnetic Front Flap

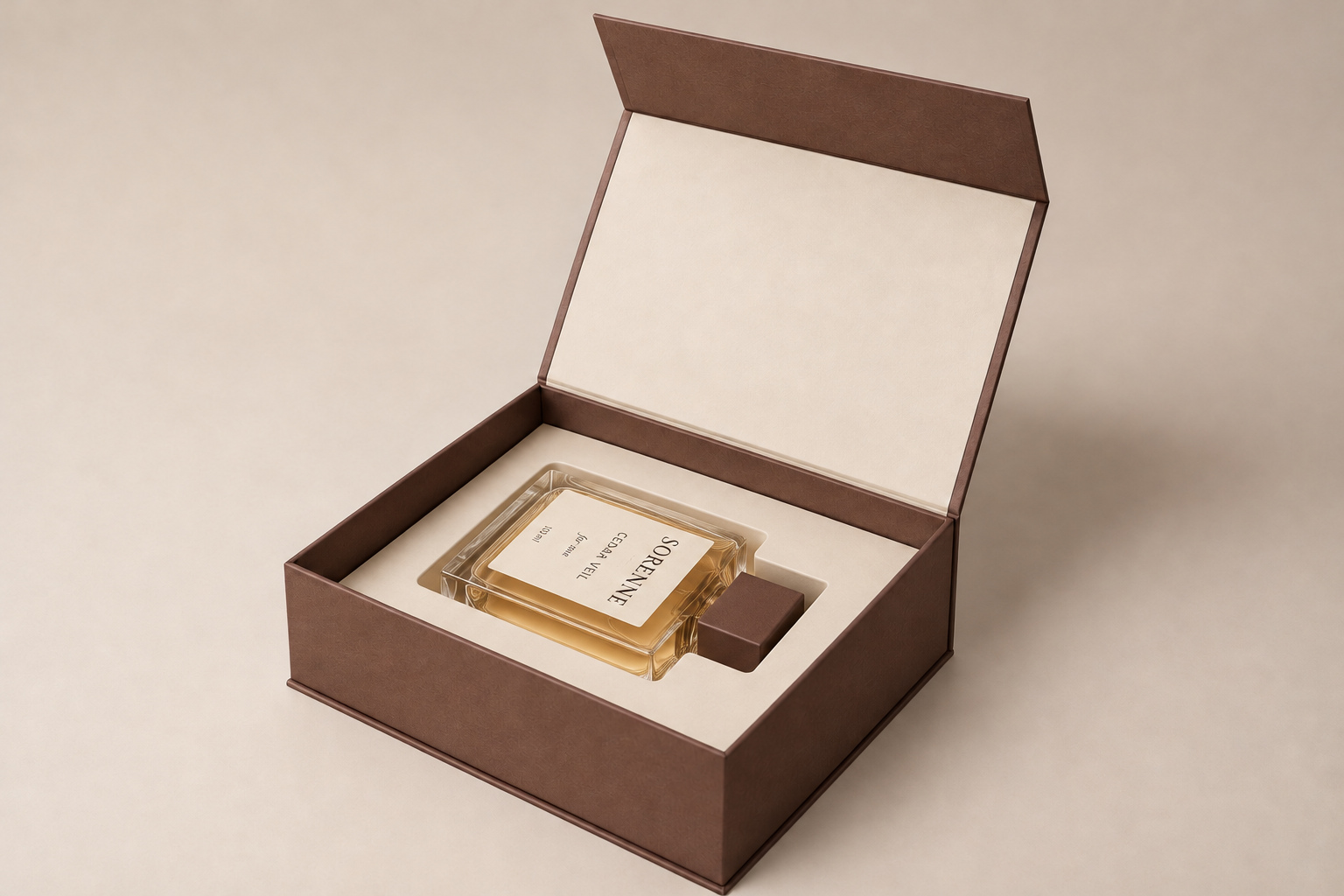

Fig. 2 The rear-hinged lid and distinct front flap on the open box. The bottle cap points right from the front closure viewpoint.
4.1 Board preparation and assembly
Cut and prepare the board components using the approved construction drawing. Form and wrap the fixed tray, then assemble it within the continuous outer case. Control the gaps between case panels so the lid and front flap can fold without crushing the wrapper. Inspect wall squareness, flatness, corner joints and lining adhesion. The front flap must fold outside the tray wall and close in the intended position.
4.2 Concealed magnets and closure alignment
The closure uses concealed magnets in the front flap and corresponding front wall. Their position and polarity must be verified during assembly. Test the decorated sample for alignment, closing feel and resistance to unwanted opening under the agreed handling conditions. Check that the flap does not pull the lid out of square. Magnet strength and the number of closure cycles require engineering and physical testing rather than assumptions from these visuals.
5 Paperboard Insert and Bottle Direction

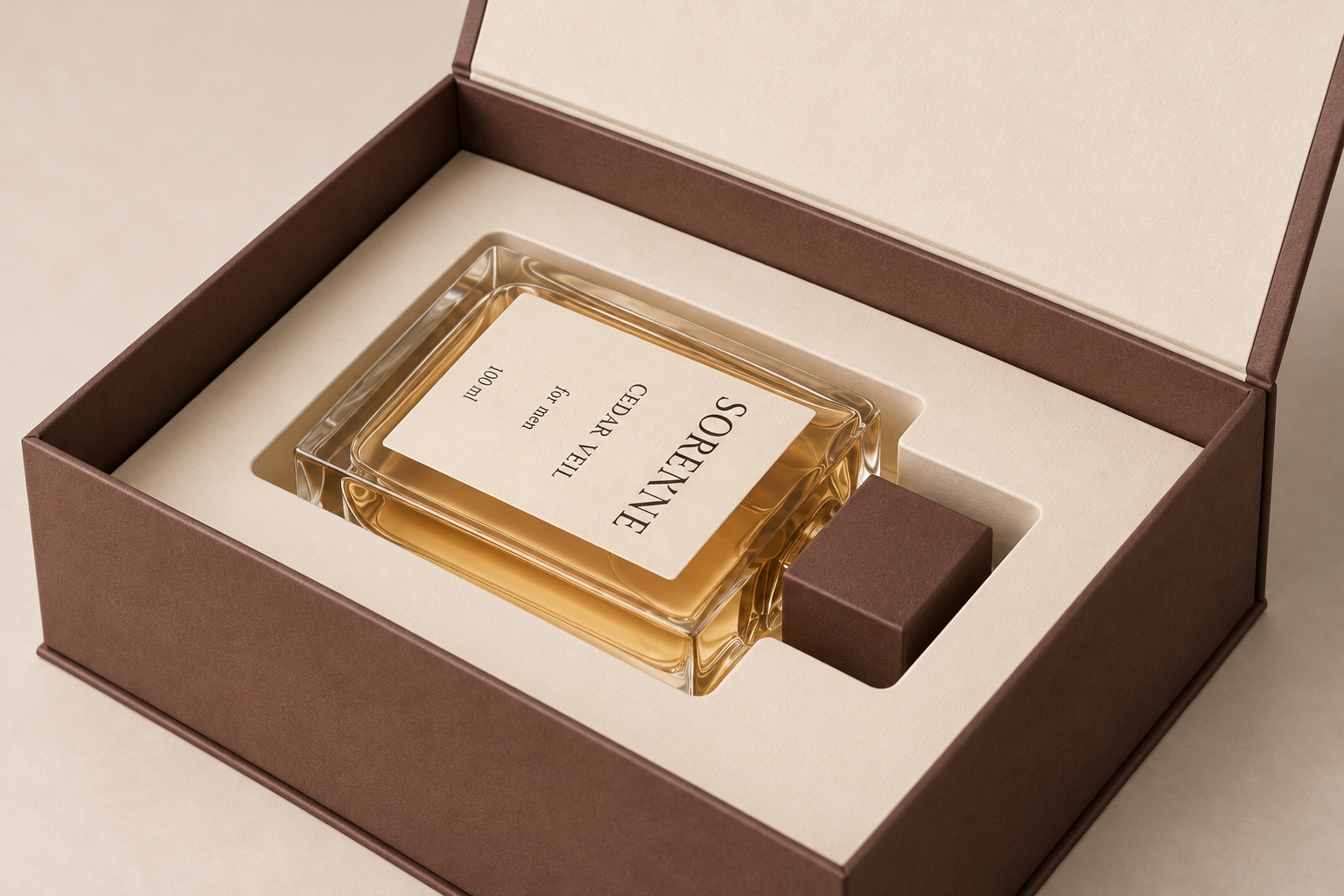

Fig. 3 The ivory insert has a rounded rectangular body opening and a cap extension on the right. The underside support requires physical validation.
The proposed insert uses an ivory paperboard deck with folded paper support beneath it. Its body opening follows the rounded rectangular bottle, with a square-cap extension on the right when facing the magnetic front flap. The bottle lies crosswise, with its base to the left and cap to the right. The displayed label rotates with the bottle. Foam, velvet and plastic inserts are not specified.
5.1 Fitting the actual filled bottle
Request a physical bottle sample or a drawing that includes the cap, shoulders, base, protrusions and filled weight. Establish support height, removal access and clearances from this information. Verify that the deck carries the bottle securely without rubbing its label or loading the cap. Check removal and reinsertion in the approved direction. A change in bottle or cap can require a new insert and a revised outer box size.
6 Sampling Quality Control and Supply Planning

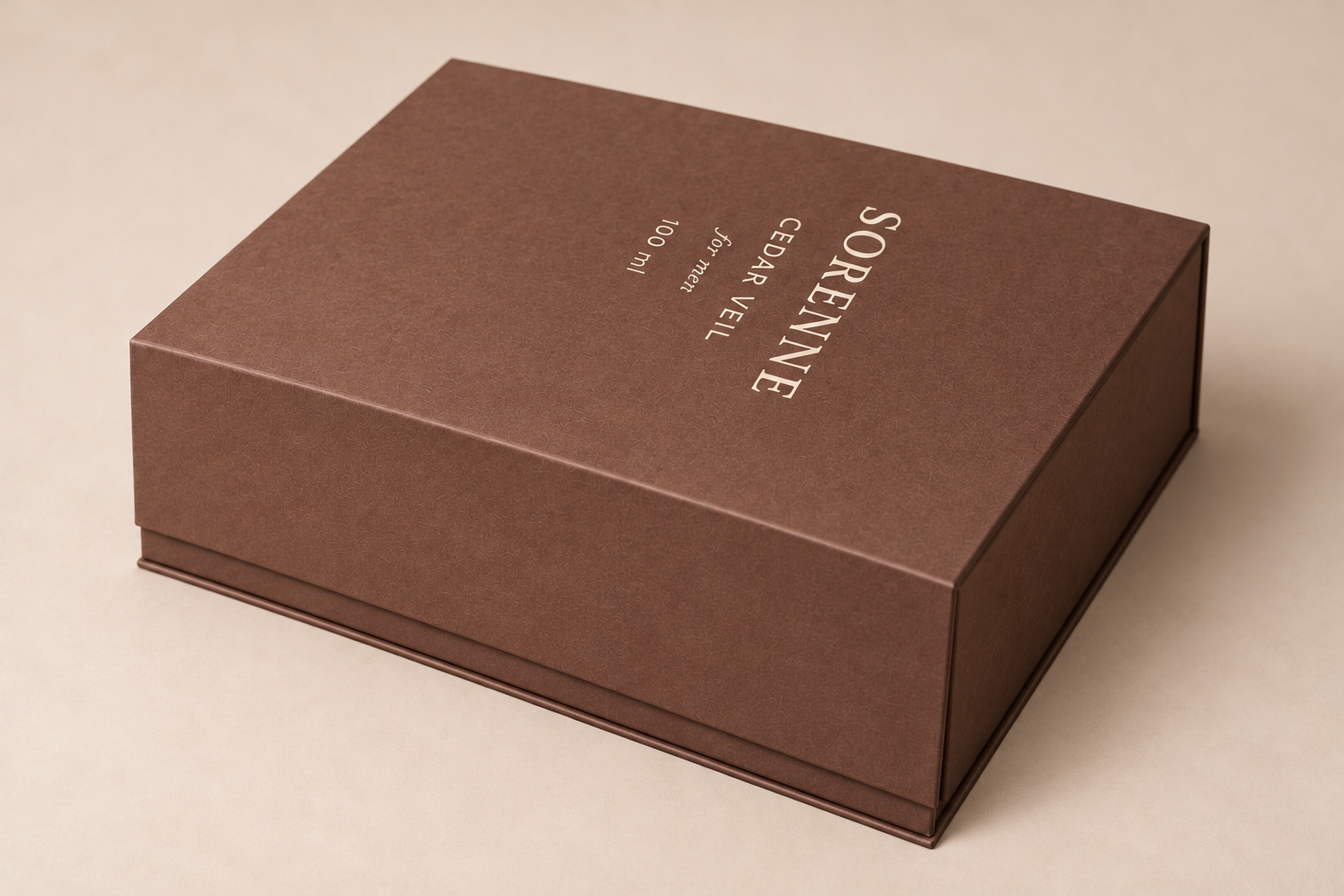

Fig. 4 Cocoa-brown fine-grain paper and warm ivory flat print. The artwork reads from the right side of the box.
6.1 MOQ sampling and lead time
Start with a structural fit sample, then approve a decorated sample using the selected paper and artwork. Check the right-facing cap cavity, exterior reading direction and magnetic flap before production approval. A quantity of 1,000 boxes is used only as a budgeting scenario, not a confirmed MOQ. Sample fees, tooling, material availability and production lead time must be confirmed by the factory for the final specification. Include approval dates and transport time in launch planning.
6.2 Production quality control
Agree checks for material identity, print legibility, orientation, wrapping cleanliness, hinge movement, magnet alignment and insert support. Define the inspection method and defect criteria before production. Transit testing should use the filled bottle, presentation box and shipping carton together. Keep approved paper swatches, print proofs, artwork and the decorated sample for repeat orders. These concept visuals do not imply a certification, test result or completed production run.

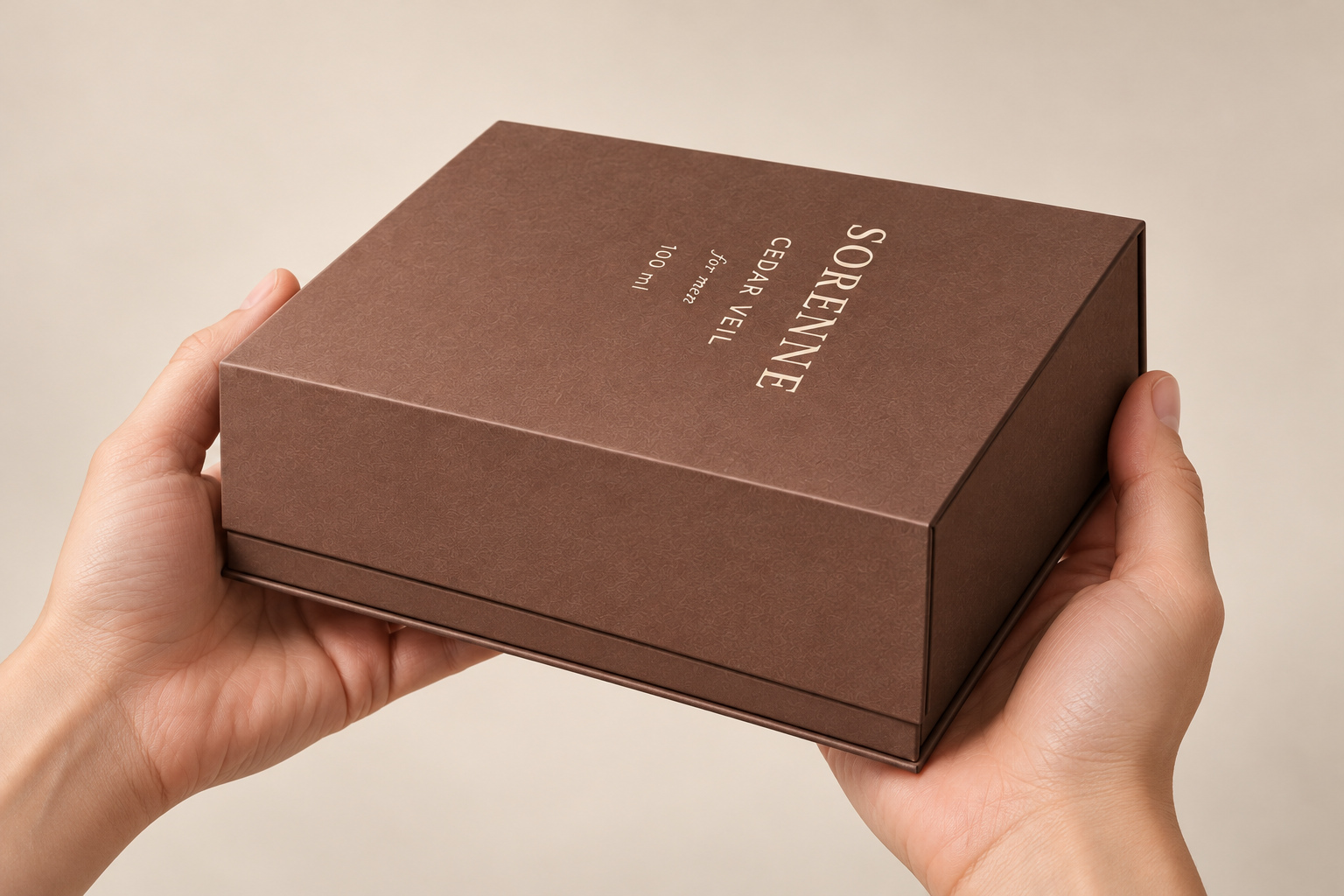

Fig. 5 Handheld view of the same closed magnetic flip-top box, with the front flap seam visible.
Request an OEM or ODM Perfume Box Quote
For OEM enquiries, send the bottle sample, print-ready artwork, order quantity and delivery destination. For ODM development, request structural design, insert engineering and a decorated prototype around the supplied container. Compare quotations that specify the same greyboard, wrapping paper, ivory print, front magnetic closure and paperboard insert. Similar construction can be developed for Custom Cosmetic Packaging Boxes after a separate fit study. Confirm MOQ, unit price, sample terms and lead time before ordering.
