Shenzhen CKT Print Co., Ltd. — Custom fragrance packaging manufacturer, serving global fragrance, cosmetics and skincare brands since 2009.

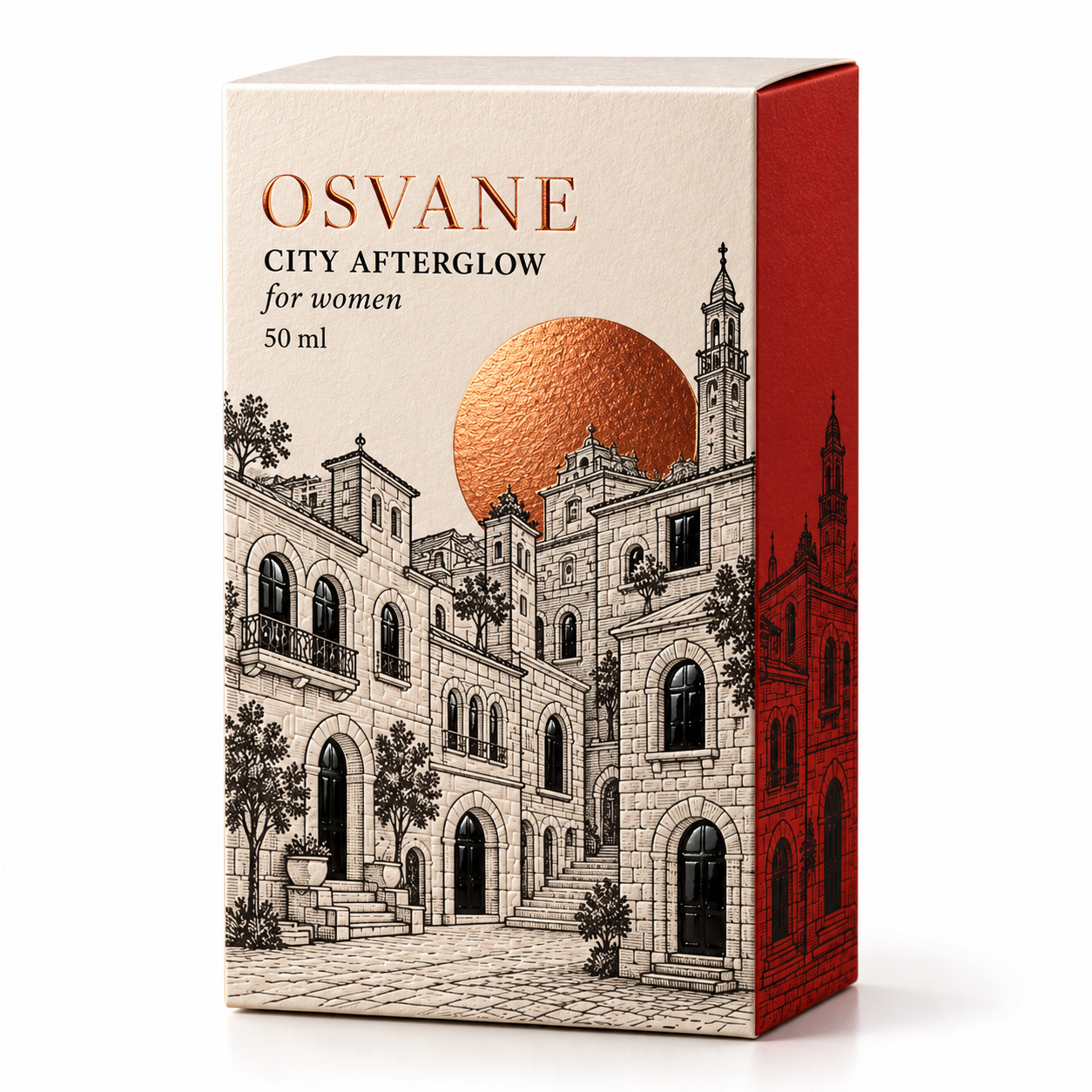

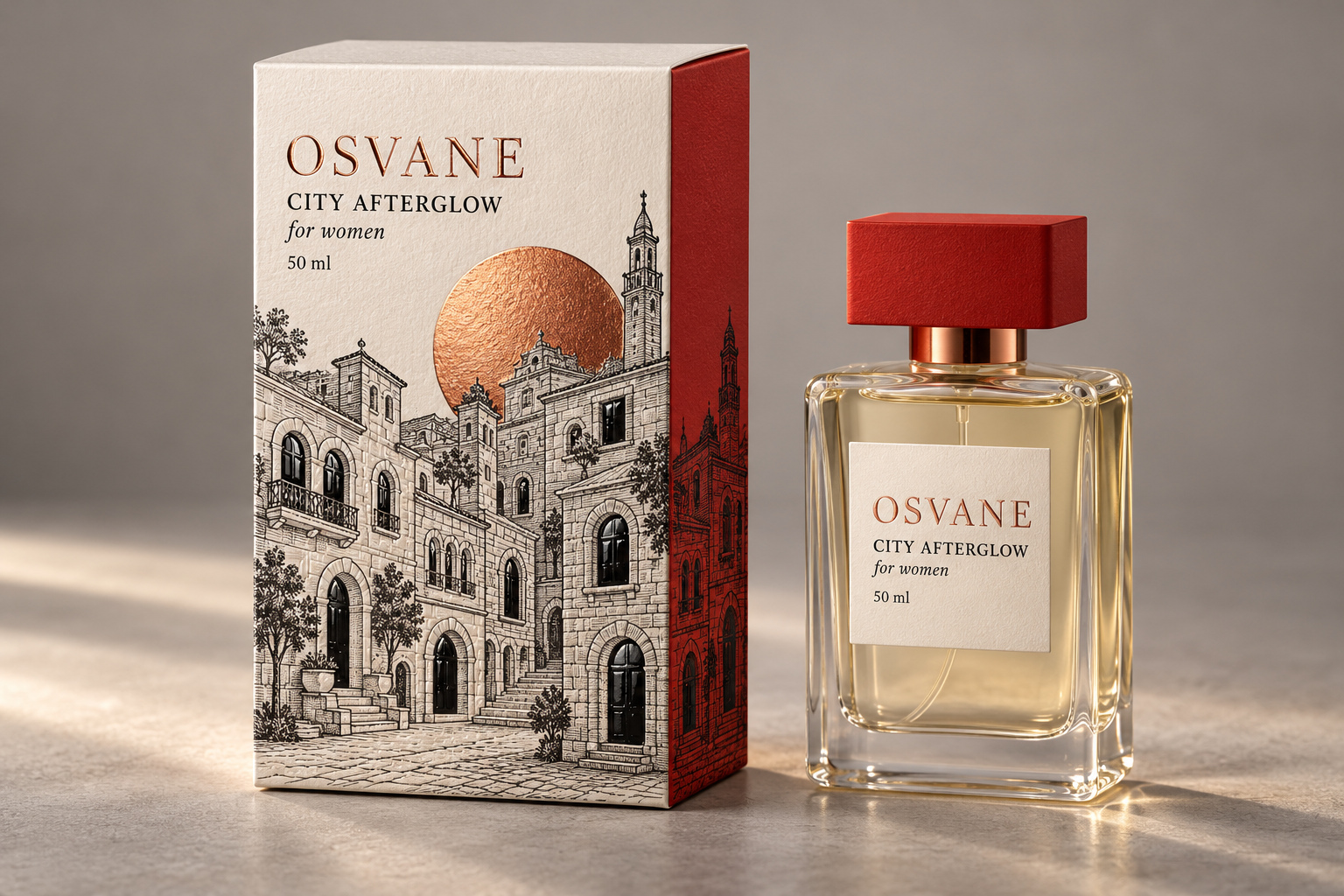

OSVANE City Afterglow — custom tuck-end carton with copper foil sun and line-engraved city illustration.
1. Why the tuck-end carton still wins for mid-volume fragrance
A tuck-end folding carton is not a step down from a rigid box. For 50 ml women's fragrances shipping at 10,000 units a year or more, it is the structure of choice: lighter freight, faster run speed, easier retail shelf replenishment, and a decoration surface that takes copper foil, line art and two-tone print without the cost of greyboard wrapping. The OSVANE City Afterglow carton shown here uses a 350–400 g/m² FSC-certified paperboard with a tactile leather-grain finish, a cream front panel paired with a deep crimson side panel, and a hammered copper foil sun set over an engraved Mediterranean city skyline.
2. Board, paper and structural spec
We run this structure on 350–400 g/m² solid bleached sulfate (SBS) or FSC-certified virgin kraft lined board, chosen for rigidity at low grammage. The carton is a reverse-tuck style with a dust flap, a crash-lock base option for high-speed auto-loading, and a 1.5–2.0 mm compression fit around the 50 ml square glass bottle. Coatings are water-based; we avoid film lamination on EU-bound runs so the carton stays paper-stream recyclable.
3. The decoration stack: offset line-art + copper foil + two-tone

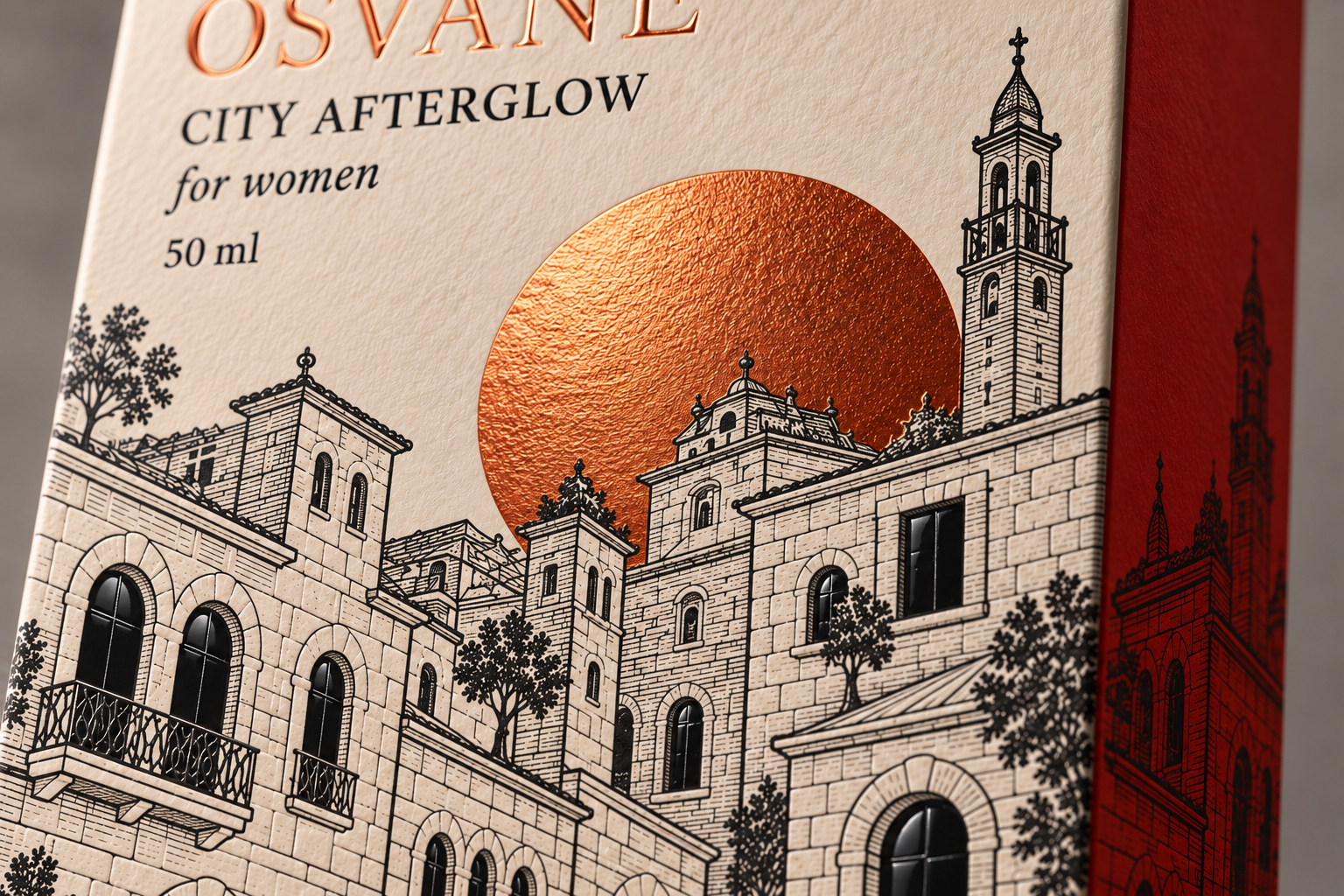

Copper foil sun over black line-engraving illustration on cream textured paper.
The artwork is a three-layer build. First, a two-colour offset print: black ink for the architectural line work and deep crimson for the side panel bleed. Second, a single-pass copper foil stamp over the OSVANE wordmark and the sun disc, using a hammered-foil finish rather than smooth foil to catch light differently on every angle. Third, optional spot UV can be added over the line work for tactile contrast. Because the foil and the offset print share a single negative, registration tolerance holds at ±0.2 mm across a 20,000-sheet run — the same tolerance we hold on our rigid box lines.
4. How the tuck flap actually performs on shelf

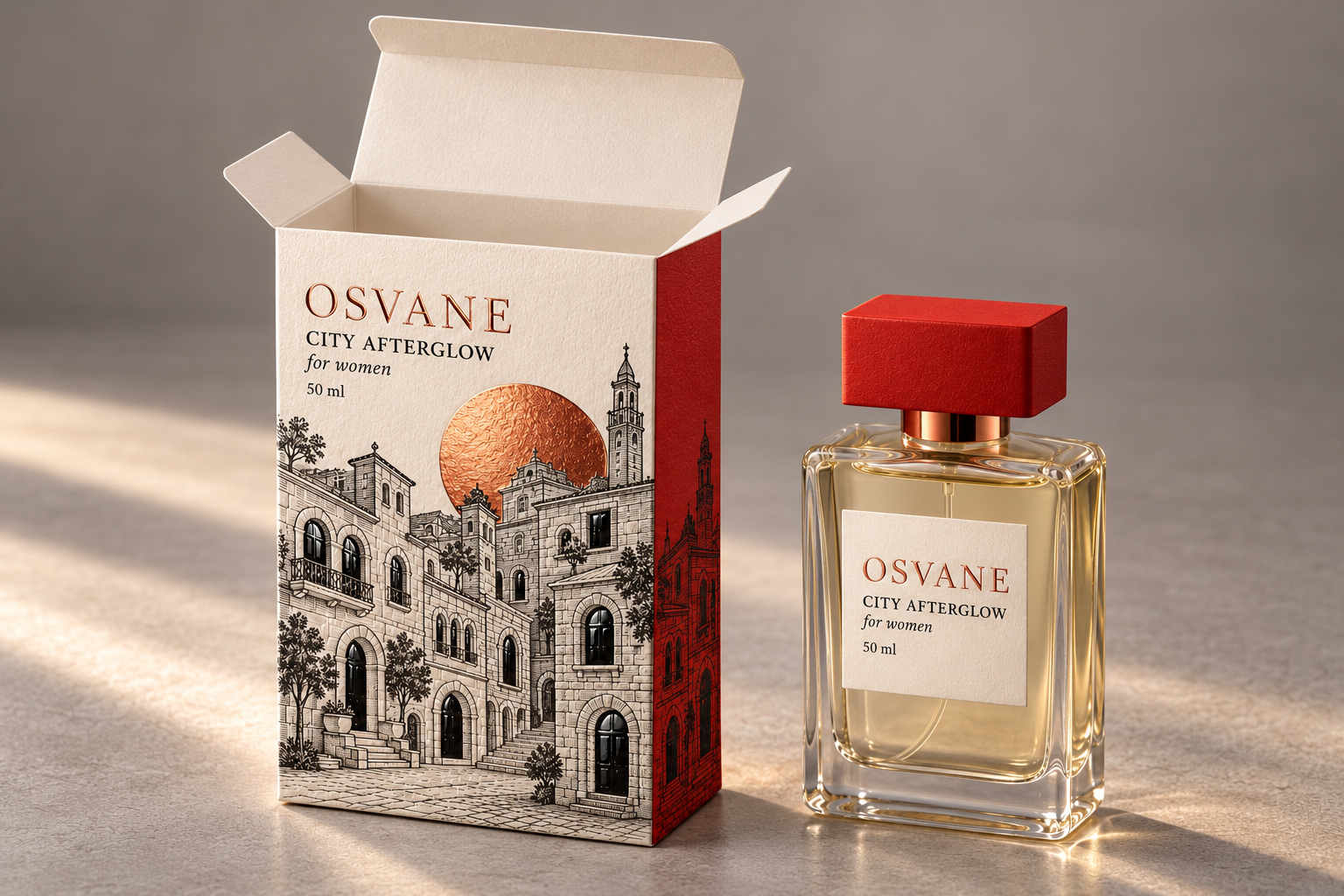

Open carton showing tuck flaps, cream interior and bottle clearance.
Tuck-end cartons fail when the flap angle is wrong: too shallow and the lid pops open in transit; too deep and the end user cannot open it in one motion. We set the flap at a 45° tuck angle with a 6 mm thumb catch, and run a drop test from 80 cm on cartons packed with a weighted bottle dummy before sign-off. The interior stays uncoated cream, the cavity is sized with a ±0.5 mm clearance to your bottle base, and for larger runs we recommend an auto-bottom crash-lock so the carton can be filled on a vertical form-fill-seal line without hand folding.
5. Brand mark engineering

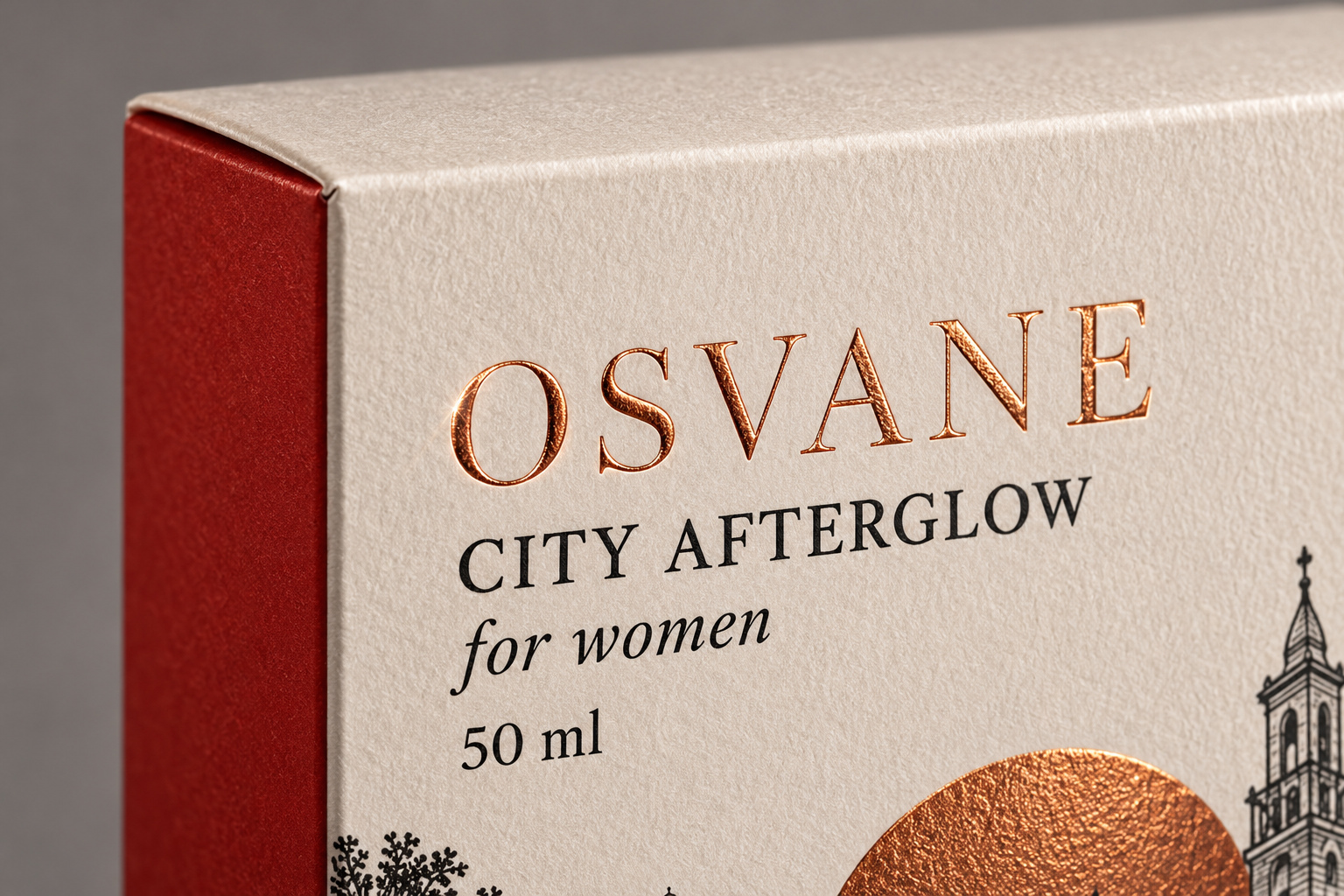

OSVANE copper foil wordmark with serif City Afterglow and italic for women.
The OSVANE wordmark is copper foil stamped, not printed. Copper sits between gold and rose gold on the luxury spectrum: warm enough for a women's fragrance, distinctive enough that it will not be confused with the thousand gold-foil cartons on the same retail shelf. The descriptor City Afterglow stays in black serif, and for women in italic, a typographic hierarchy that reads as editorial rather than cosmetic. We supply the brand file setup, the foil block and the offset plate as a matched tool set, so a reorder six months later does not drift.
6. Handheld scale and retail feel

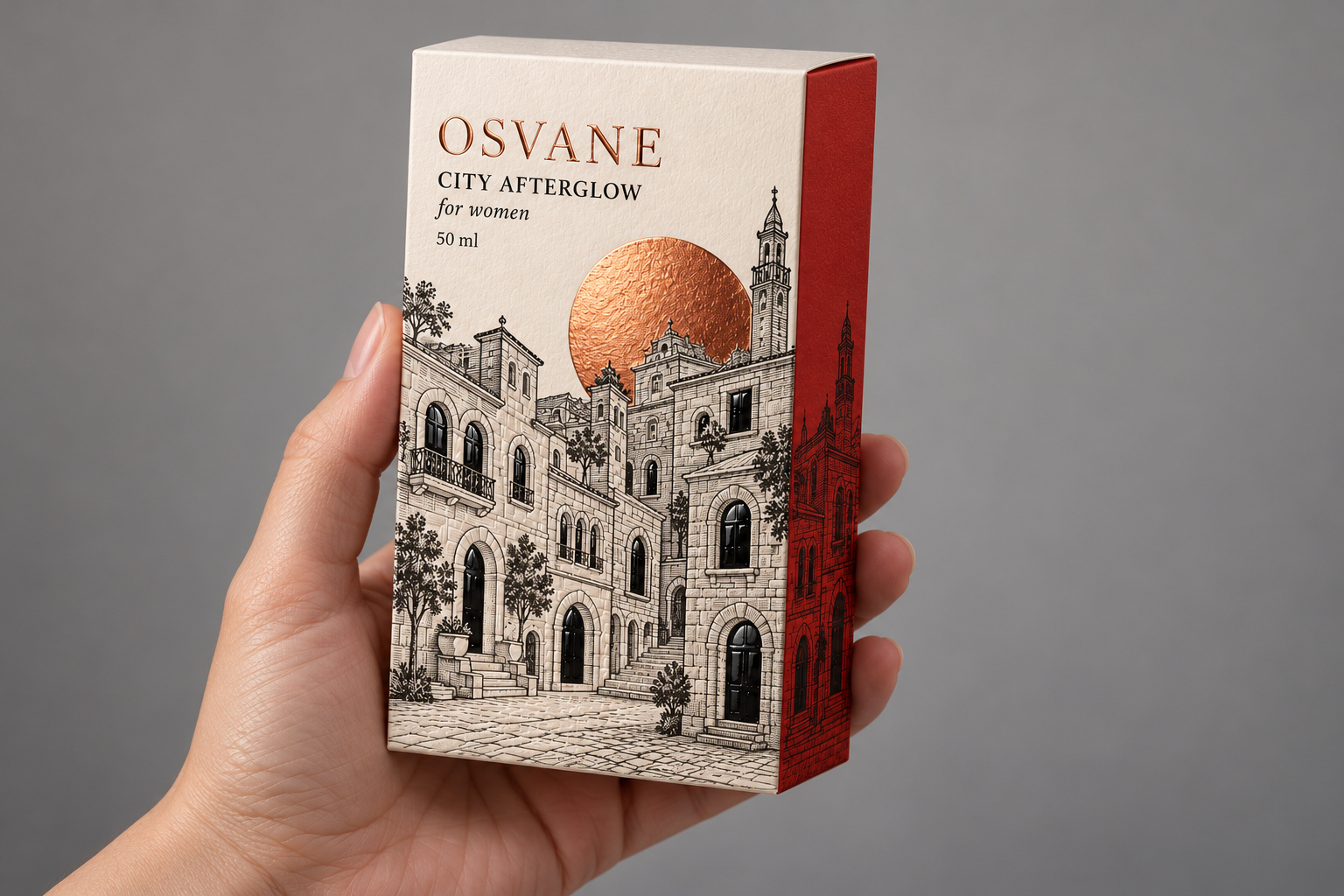

Handheld view — carton proportions for a 50 ml bottle.
A 50 ml tuck-end carton typically measures 110 × 65 × 38 mm. In hand it reads as a premium paper object, not a cardboard box: the tactile grain, the copper sheen and the deep crimson edge give it the perceived weight of a rigid box at roughly one third of the unit cost. This is the sweet spot for DTC fragrance brands that want unboxing quality without the freight penalty of a 1200 gsm rigid lid-and-base.
7. Production scale and QC at CKT
CKT Print runs folding cartons on a 16-litre Heidelberg offset press line with inline foil stamping. Monthly capacity for tuck-end perfume cartons is in the high hundreds of thousands of units; we ship to fragrance brands in the EU, US, Middle East and Southeast Asia. Every batch goes through three checkpoints: a registration sheet pulled at press start, a foil-adhesion cross-hatch test on the first 50 cartons, and an AQL 2.5 dimensional check on the finished lot. We do not treat tuck-end cartons as a secondary product — the same QC discipline applies as on our rigid box, drawer box and magnetic flap lines.
8. How to structure an enquiry
Instead of a generic 'get a quote', send us four numbers: your bottle dimensions (base and height), your annual or per-batch quantity, the decoration processes you need (offset colours, foil type, UV, emboss), and your destination market. We return a structured quotation with the exact board, foil and tooling breakdown, and a lead time committed to the day. For this OSVANE-style carton on 350 g/m² FSC board with copper foil and two-colour offset, indicative FOB Shenzhen pricing at production scale is:
• 1,000–2,999 pcs: USD 0.72 / pc
• 3,000–9,999 pcs: USD 0.55 / pc
• 10,000–29,999 pcs: USD 0.42 / pc
• 30,000 pcs and above: USD 0.32 / pc
Pricing excludes the bottle, the insert and the master carton; it includes plate making, foil tooling and standard export packaging.
9. EU compliance: PPWR-ready
PPWR-ready: FSC paperboard, mono-material inserts, no PVC, magnets specified as separable component. For EU-bound runs we also line the carton interior with uncoated paper rather than plastic lamination, and we can supply a recyclability declaration and FSC chain-of-custody document on request.
10. What we are seeing in 2026
Two signals are worth noting for fragrance brand owners. First, copper foil is displacing gold as the warm-tone premium foil of choice for women's launches — it photographs better on social and reads as more contemporary than yellow gold. Second, line-engraved illustration (architectural, botanical, topographic) is replacing abstract geometric patterns on mid-price cartons, because it carries narrative: a city, a landscape, a story. Both trends are achievable on a tuck-end carton at scale; neither requires a rigid box.
11. Talk to us
If you are sourcing a tuck-end perfume carton for a 2027 launch, send your bottle size and volume target to Sherry Wu. We return a technical proposal within 48 hours, including paper swatches, foil references and a matched structural dieline.
